Solar Products

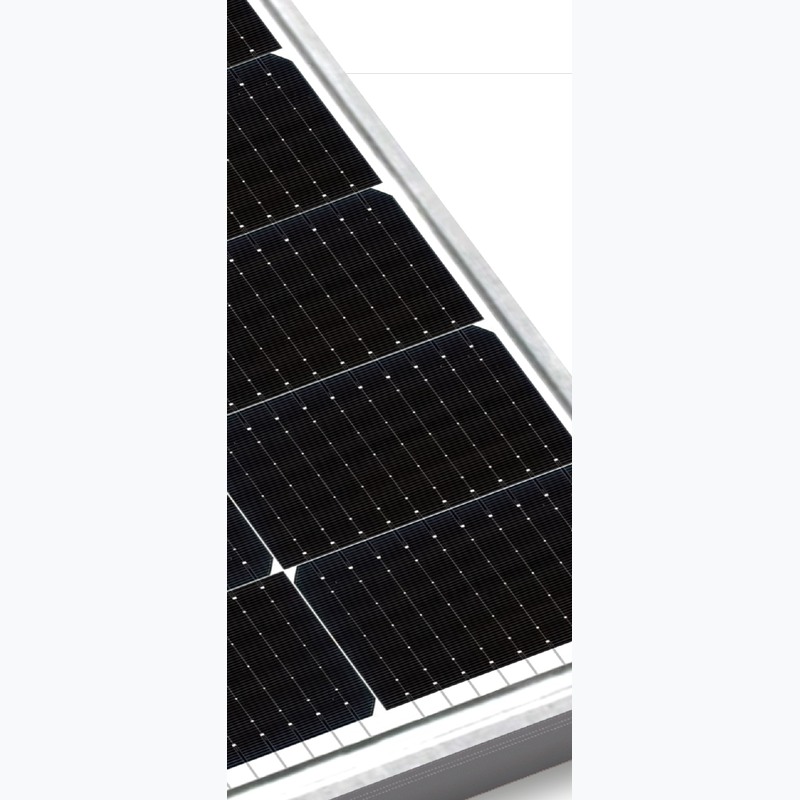

Rayzon L'LIOS RSB540WC 540Wp Bifacial Mono PERC Solar Panel
Brand: Rayzon Solar
Product type: Solar panels
Final brand, model and specifications will be confirmed in your quotation.
Rayzon RSB540WC 540Wp Mono PERC 10BB bifacial transparent backsheet solar module.
Availability to be confirmedSelling unit: Nos. Final price and delivery confirmed in your quotation.
Price on request
This listing covers a product range. Tell us your preferred brand, size and model in your quotation notes; the final selection will be confirmed before payment.
Listed minimum order: As per enquiry. Smaller requirements can be enquired about; supply quantity is confirmed in your quotation.
| Sizes / Ratings | RSB540WC 540Wp STC, 405W NOCT, module efficiency 20.94%, Vmp 41.86 V, Imp 12.91 A, Voc 49.78 V, Isc 13.53 A. Bifacial output: 567 W at 5%, 594 W at 10%, 676 W at 25% backside gain; dimensions 2278 x 1133 x 40 mm; 28.6 kg. |
| Material | 144 half-cut Mono PERC bifacial cells, anodized aluminium frame, 3.2 mm ARC coated low-iron tempered glass, transparent PVDF backsheet |
| Standards | IS 14286; IEC 61215, 61730, 62804, 61853, 61701, 62716; ISO 9001:2015, ISO 14001:2015, ISO 45001:2018 |
| MOQ | As per enquiry |
| Applications | On-grid rooftop solar, commercial EPC projects, industrial solar plants and utility PV installations |
Key Features
- Mono PERC 10BB bifacial transparent backsheet module; positive power tolerance 0 to +4.99W; AR coated glass; bifacial power gain; 30-year linear performance warranty.
